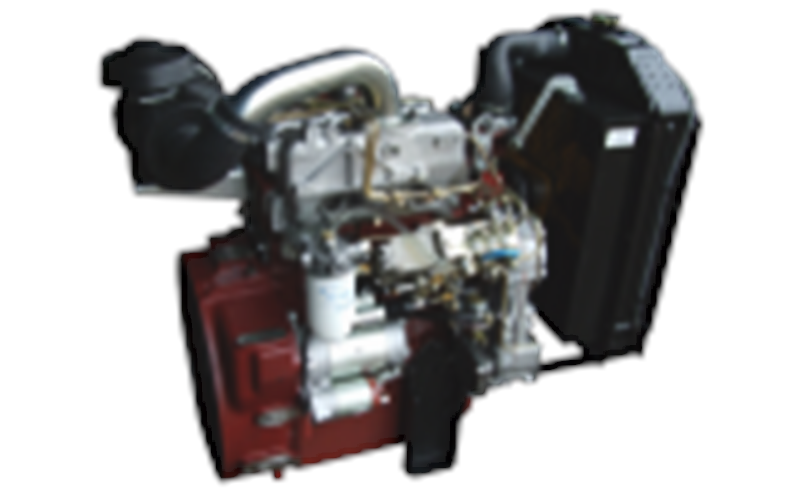

Endüstriyel Dizel Motor 3104 I

TEKNIK OZELLIKLER / TECHNICAL SPECIFICATIONS

Tip / Type : Genset, 4 Zamanlı, Su Soğutmalı, Sıra Tip, Doğal Emişli Dizel Motor / Genset, 4 Cycle, Water Cooled, In-Line, Natural Aspirated
Silindir Sayısı / No of Cylinder :  3
Bore x Stroke : 104 mm x 115 mm
Motor Hacmi / Engine Displacement : 2.9 L
Sıkıştırma Oranı / Compression Ratio : 17:1
Kuru Ağırlık / Dry Weight : 375 kg
Ölçüler / Dimensions - L x W x H  : 99 x 59 x 91 cm

Alternator 12V 45A
Voltage Regulator 12V
Starter 2.5 kW
Volan Muhafaza / Flywheel Housing SAE 3
Yakıt Tüketimi / Fuel Consumption 205-220 gr/kW.Hr

PERFORMANS
Motor Gücü / Rated Output 44 kW @ 2200 RPM
Maks Tork / Max Torque 205 Nm @ 1500 RPM

Tüm Değerler ISO 3046-1 TS4218 Standardına Göre Verilmiştir.



Bilgiler önceden haber vermeksizin değiştirilebilir.

OPSIYONLAR / OPTIONS
Voltaj : 24V
Mazotlu giriş hava ısıtıcısı
Specifications subject to change without notice.
